1. Machine body (V12)
2. 70x70mm Field Lens
3. 200x200mm Field Lens
4. Pet Tag & Crystal Set
5. Wood Board
6. U Disk
7. Power Supply Kit
8. Security Key
9. Goggles
10. User Manual
11. Tool Kit
12. Focus & Calibration Kit
13. Positioning Bar

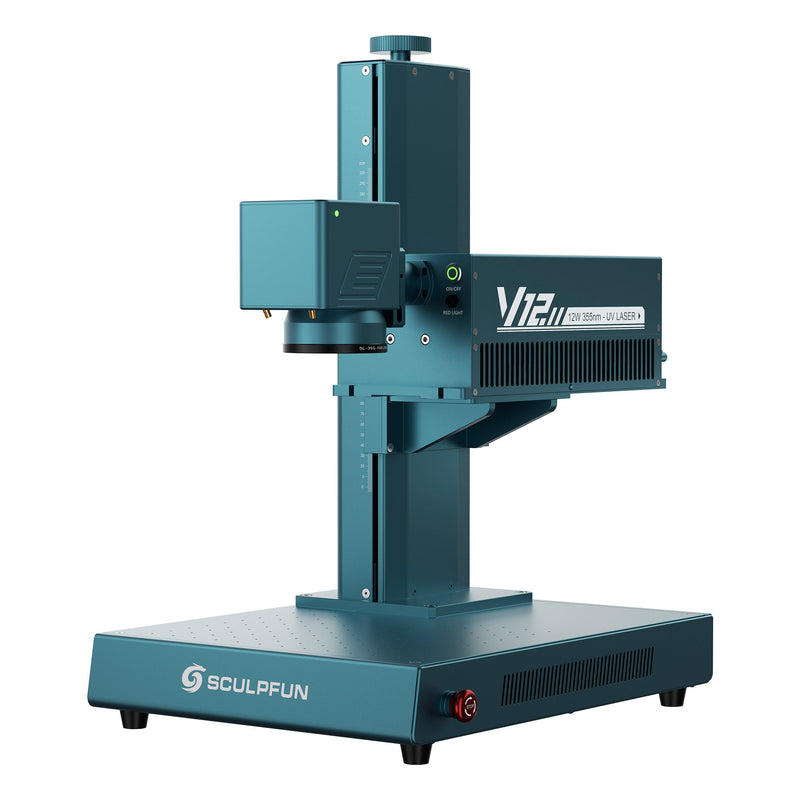

SCULPFUN V12 UV Professional Laser Engraver
Note: Pre-order now. Estimated delivery: mid-September.
-
Fast Shipping
Free shipping, 3 -10 business days for delivery -
14 Days Return
Simply return it within 14 days -
1 Year Free Warranty
Provide free replacement within 1 year -
2% rebate on orders
Get 2% of your order back
SCULPFUN V12 UV Professional Laser Engraver
C$7,699.00
Where Precision Meets Possibility
Magic Inside Crystal. Light That Never Fades.
UV 3D inner engraving transforms crystal into a permanent visual memory. Carving detailed structures inside the material while leaving the surface completely untouched. As light passes through, every angle reveals a new layer of depth, turning glass and crystal into timeless, collectible artworks.
The SCULPFUN V12 UV laser delivers rich depth, crisp edges, and ultra-precise engraving. Achieving stunning clarity even in the finest internal structures.
Turn meaningful memories into permanent 3D crystal engravings that transform photos, symbols, and designs into timeless keepsakes.
Build a premium product line that attracts attention, enhances perceived value, and strengthens your creative business.
Color That Redefines Metal
Break away from monochrome engraving. Unlock vibrant, long-lasting color expression on metal with ultra-precise UV control.
Depth You Can See. Texture You Can Feel.
From glass and stone to metal and wood, UV engraving adds refined dimensional relief that transforms ordinary surfaces into premium visual works.
No Burn. No Charring. Pure UV Precision.
UV cold processing uses high-energy photons to break molecular bonds with minimal heat input. Delivering clean, precise engraving with no scorching, deformation, or post-processing required.
Paper & Cardboard: Clean cuts and markings without yellowing or scorching.
Leather: Precise results with intact texture and no hardening.
Feather: Ultra-fine engraving with zero deformation or edge burning.
Wood Veneer: Sharp, detailed engraving with natural edges preserved.
Ultra-Fine Precision. Exceptional Detail.
With a laser spot as small as 0.0019 mm, the SCULPFUN V12 delivers exceptional accuracy and finer engraving details than conventional fiber or CO₂ lasers.
Details as small as 0.3mm remain clearly visible, enabling precise engraving on rings and other fine jewelry.
Its optimized vector-fitting algorithm with 0.001 mm resolution brings every detail to life with stunning clarity.
Dual Field Lens for Flexible Production Scale
With interchangeable field lenses, SCULPFUN V12 adapts to different creative and commercial needs. From ultra-precise micro engraving to large-format production.
Expanded working area for larger materials and batch-style creative production, balancing efficiency and versatility.
Concentrated laser energy for ultra-precise engraving, ideal for crystal inner engraving, fine details, and high-accuracy micro work.
Rotary. Extended. More Possibilities.
Do More, With V12 UVSwitch. Create. Expand.
See how it fits different creative scenarios.
"I want to create detailed crystal pieces and unique gifts."
That’s exactly where V12 UV excels. It enables precise 3D inner engraving on crystal, glass, metal, and more—helping me turn creative ideas into premium products.
"I need professional results without complex setups."
V12 UV delivers stable, high-precision engraving with dual-light positioning and electric Z-axis focus—making high-quality results easy to achieve without complicated adjustments.
"I want to turn my designs into real products I can sell."
From crystal engraving to metal customization and glass relief work, V12 UV helps transform creative concepts into commercial-grade products.
"I need precision without slowing down my workflow."
With 15,000mm/s speed and precise positioning, the V12 UV delivers fast, consistent engraving that keeps my workflow moving from design to finished product.
Beyond Speed, the SCULPFUN V12 UV delivers extreme micro-level precision with an ultra-fine 0.0019mm laser spot. Where traditional diode or CO₂ lasers can struggle with edge burn, distortion, or loss of fine detail, UV cold processing enables ultra-fine energy control at the molecular level. Its UV cold processing minimizes charring and thermal damage, producing crisp, high-contrast details on glass, coated metals, plastics, and complex materials. From micro-text to photographic-level engraving, the V12 UV delivers exceptional clarity and precision.
SCULPFUN V12 changes the pace with engraving speeds of up to 15,000mm/s. Compared with 6,000mm/s from other brands, V12 delivers up to 2.5× faster engraving, significantly reducing processing time and keeping your creative workflow moving. From intricate details to larger production tasks, create more in less time.
Processes up to 1mm metal with fine, controlled precision
Cuts up to 3mm acrylic with clean, precise edges
Engraves and micro-scores up to 3mm glass with high clarity detail
Cuts up to 5mm wood with smooth edge finish
Engraving Made Simple
SGD Laser and LightBurn Pro streamline the entire workflow from design import to engraving in just a few intuitive steps.
IOS/Android APP
Macos/Windows PC software
Expand Your Creative Range
Go beyond flat surfaces and standard sizes with versatile rotary and workspace expansion.
Package Contents
Specification
Model
V12
V5
Processing Capacity
Laser System
12W UV
5W UV
Laser Wavelength
355nm
355nm
Material Capability
Engraving Capability:
Paper, Cardboard, wood, Leather, Fabric, MDF, Felt, Bamboo, Certain acrylic types (dark / opaque only), Glass, Crystal, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Stainless steel, Aluminum, Gold, Platinum, Silver, Brass, Titanium, Plated metal, Coated metals, Anodized aluminum, ABS, PC, PLA, PMMA, etc.
3D Inner Engraving :
Glass, Dark glass, Crystal
Relief Engraving: Wood, MDF, Glass, Stone, and Slate.
Color Metal Marking:
Stainless steel, Titanium, Brass, Anodized aluminum
Cutting Capability:
Wood, Basswood, Paper, Cardboard, Fabric, leather, Acrylic (dark / opaque only), Plastics (PE, PP, EVA, PET, etc.), Aluminum, Stainless Steel, Brass, Glass
Paper, Cardboard, wood, Leather, Fabric, MDF, Felt, Bamboo, Certain acrylic types (dark / opaque only), Glass, Crystal, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Stainless steel, Aluminum, Gold, Platinum, Silver, Brass, Titanium, Plated metal, Coated metals, Anodized aluminum, ABS, PC, PLA, PMMA, etc.
3D Inner Engraving :
Glass, Dark glass, Crystal
Relief Engraving: Wood, MDF, Glass, Stone, and Slate.
Color Metal Marking:
Stainless steel, Titanium, Brass, Anodized aluminum
Cutting Capability:
Wood, Basswood, Paper, Cardboard, Fabric, leather, Acrylic (dark / opaque only), Plastics (PE, PP, EVA, PET, etc.), Aluminum, Stainless Steel, Brass, Glass
Engraving Capability:
Paper, Cardboard, wood, Leather, Fabric, MDF, Felt, Bamboo, Certain acrylic types (dark / opaque only), Glass, Crystal, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Stainless steel, Aluminum, Gold, Platinum, Silver, Brass, Titanium, Plated metal, Coated metals, Anodized aluminum, ABS, PC, PLA, PMMA, etc.
3D Inner Engraving:
Glass, Dark glass, Crystal
Relief Engraving: Wood, MDF, Glass, Stone, and Slate.
Cutting Capability:
Wood, Basswood, Paper, Cardboard, Fabric, leather, Acrylic (dark / opaque only), Plastics (PE, PP, EVA, PET, etc.),Glass
Paper, Cardboard, wood, Leather, Fabric, MDF, Felt, Bamboo, Certain acrylic types (dark / opaque only), Glass, Crystal, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Stainless steel, Aluminum, Gold, Platinum, Silver, Brass, Titanium, Plated metal, Coated metals, Anodized aluminum, ABS, PC, PLA, PMMA, etc.
3D Inner Engraving:
Glass, Dark glass, Crystal
Relief Engraving: Wood, MDF, Glass, Stone, and Slate.
Cutting Capability:
Wood, Basswood, Paper, Cardboard, Fabric, leather, Acrylic (dark / opaque only), Plastics (PE, PP, EVA, PET, etc.),Glass
Working Area
7.9 × 7.9 inches / 2.8 × 2.8 inches (Dual Field Lens)(200 × 200 mm / 70 × 70 mm)
13.8 × 7.9 inches (with Slide Extension Kit) (350 mm × 200 mm)
13.8 × 7.9 inches (with Slide Extension Kit) (350 mm × 200 mm)
5.9 × 5.9 inches / 2.8 × 2.8 inches (Dual Field Lens)(150 × 150 mm / 70 × 70 mm)
13.8 × 5.9 inches (with Slide Extension Kit) (350 mm ×150 mm)
13.8 × 5.9 inches (with Slide Extension Kit) (350 mm ×150 mm)
Max. Working Speed
15,000 mm/s
10,000 mm/s
Smart Software & Connectivity
Software
SGD Laser / LightBurn Pro
SGD Laser / LightBurn Pro
Supported Systems
Windows / macOS / Android / iOS
Windows / macOS / Android / iOS
File Formats
SVG /DXF /JPG/JPEG/PNG/ BMP
SVG /DXF /JPG/JPEG/PNG/ BMP
Connection
USB / WiFi (App-based control)
USB / WiFi (App-based control)
Focus Mode
Electric Lifting / Manual Lifting
Electric Lifting / Manual Lifting
Accuracy & Performance
Repeated Positioning Accuracy
0.001mm
0.001mm
Laser Spot Size
0.0019mm
0.0019mm
General Information
Operating Voltage
110V-230V
110V-230V
Operating Current
14.5A
6.5A/3.17A
Cooling Type
Air Cooling
Air Cooling
Machine Size
15.2 × 23.3 × 25.1 inches (387 × 592 × 638 mm)
15.2 × 23.3 × 25.1 inches (387 × 592 × 638 mm)
Machine Weight
26.7kg
26.7kg
Package Size
27.6 × 18.9 × 16.5 inches (700 × 480 × 420 mm)
27.6 × 18.9 × 16.5 inches (700 × 480 × 420 mm)
Package Weight
33kg
33kg
Certifications
CE/ FCC/ROHS/IEC60825
CE/ FCC/ROHS/IEC60825
